DFTL: A Flash Translation Layer Employing Demand-based Selective Caching of Page-level Address Mappings (ASPLOS'09)
Abstract
Recent technological advances in the development of flash memory based devices have consolidated their leadership position as the preferred storage media in the embedded systems market and opened new vistas for deployment in enterprise-scale storage systems. Unlike hard disks, flash devices are free from any mechanical moving parts, have no seek or rotational delays and consume lower power. However, the internal idiosyncrasies of flash technology make its performance highly dependent on workload characteristics. The poor performance of random writes has been a cause of major concern which needs to be addressed to better utilize the potential of flash in enterprise-scale environments. We examine one of the important causes of this poor performance: the design of the Flash Translation Layer (FTL) which performs the virtual-to-physical address translations and hides the erase-before-write characteristics of flash.
We propose a complete paradigm shift in the design of the core FTL engine from the existing techniques with our Demand-based Flash Translation Layer (DFTL) which selectively caches page-level address mappings. We develop a flash simulation framework called FlashSim. Our experimental evaluation with realistic enterprise-scale workloads endorses the utility of DFTL in enterprise-scale storage systems by demonstrating: (i) improved performance, (ii) reduced garbage collection overhead and (iii) better overload behavior compared to state-of-the-art FTL schemes. For example, a predominantly random-write dominant I/O trace from an OLTP application running at a large financial institution shows a 78% improvement in average response time (due to a 3-fold reduction in operations of the garbage collector), compared to a state-of-the-art FTL scheme. Even for the well-known read-dominant TPC-H benchmark, for which DFTL introduces additional overheads, we improve system response time by 56%.
The Flash Translation Layer
Clearly, in-place updates would require an erase-per-update, causing performance to degrade. To get around this, FTLs implement out-of-place updates. An out-of-place update: (i) chooses an already erased page, (ii) writes to it, (iii) invalidates the previous version of the page in question, and (iv) updates its mapping table to reflect this change. These out-of-place updates bring about the need for the FTL to employ a garbage collection (GC) mechanism. The role of the GC is to reclaim invalid pages within blocks by erasing the blocks (and if needed relocating any valid pages within them to new locations)
State-of-The-Art FTLs
State-of-the-art FTLs [2, 19, 13, 20] are based on hybrid log-buffer based approaches. They try to address the problems of expensive full merges, which are inherent to any log-buffer based hybrid scheme, in their own unique way. However, all of these attempts are unable to provide the desired results.
• Block Associative Sector Translation (BAST) [2] scheme exclusively associates a log block with a data block. In presence of small random writes, this scheme suffers from log block thrashing [19] that results in increased full merge cost due to inefficiently utilized log blocks.
• Fully Associative Sector Translation (FAST) [19] allows log blocks to be shared by all data blocks. This improves the utilization of log blocks as compared to BAST. FAST keeps a single sequential log block dedicated for sequential updates while other log blocks are used for performing random writes. Thus, it cannot accommodate multiple sequential streams and does not provide any special mechanism to handle temporal locality in random streams.
• SuperBlock FTL [13] scheme utilizes existence of block level spatial locality in workloads by combining consecutive logical blocks into a superblock. It maintains page-level mappings within the superblock to exploit temporal locality in the request streams by separating hot and cold data within the superblock.
However, the three-level address translation mechanism employed by this scheme causes multiple OOB area reads and writes for servicing the requests. More importantly, it utilizes a fixed superblock size which needs to be explicitly tuned to adapt to changing workload requirements.
• The recent Locality-Aware Sector Translation (LAST) scheme [20] tries to alleviate the shortcomings of FAST by providing multiple sequential log blocks to exploit spatial locality in workloads. It further separates random log blocks into hot and cold regions to reduce full merge cost. In order to provide this dynamic separation, LAST depends on an external locality detection mechanism.
However, Lee et al. [20] themselves realize that the proposed locality detector cannot efficiently identify sequential writes when the small-sized write has sequential locality. Moreover, maintaining sequential log blocks using a block-based mapping table requires the sequential streams to be aligned with the starting page offset of the log block in order to perform switch-merge. Dynamically changing request streams may impose severe restrictions on the utility of this scheme to efficiently adapt to the workload patterns.
Comparison of Existing State-of-the-art FTLs with DFTL
Table 2 shows some of the salient features of different FTL schemes. The DFTL architecture rovides some intrinsic advantages over existing state-of-the-art FTLs as follows
• Full Merge - Existing hybrid FTL schemes try to reduce the number of full merge operations to improve their performance. DFTL, on the other hand, completely does away with full merges. This is made possible by page-level mappings which enable relocation of any logical page to any physical page on flash while other hybrid FTLs have to merge page-mapped log blocks with block-mapped data blocks.
• Partial Merge - DFTL utilizes page-level temporal locality to store pages which are accessed together within same physical blocks. This implicitly separates hot and cold blocks as compared to LAST and Superblock schemes [13, 20] which require special external mechanisms to achieve the segregation. Thus, DFTL adapts more efficiently to changing workload environment as compared with existing hybrid FTL schemes.
• Random Write Performance - As is clearly evident, it is not necessarily the random writes which cause poor flash device performance but the intrinsic shortcomings in the design of hybrid FTLs which cause costly merges (full) on log blocks during garbage collection. Since DFTL does not require these expensive full-merges, it is able to improve random write performance.
• Block Utilization - In hybrid FTLs, only log blocks are available for servicing update requests. This can lead to low block utilization for workloads whose working-set size is smaller than the flash size. Many data blocks will remain un-utilized (hybrid FTLs have block-based mappings for data blocks) and unnecessary garbage collection will be performed. DFTL solves this problem since updates can be performed on any of the data blocks.

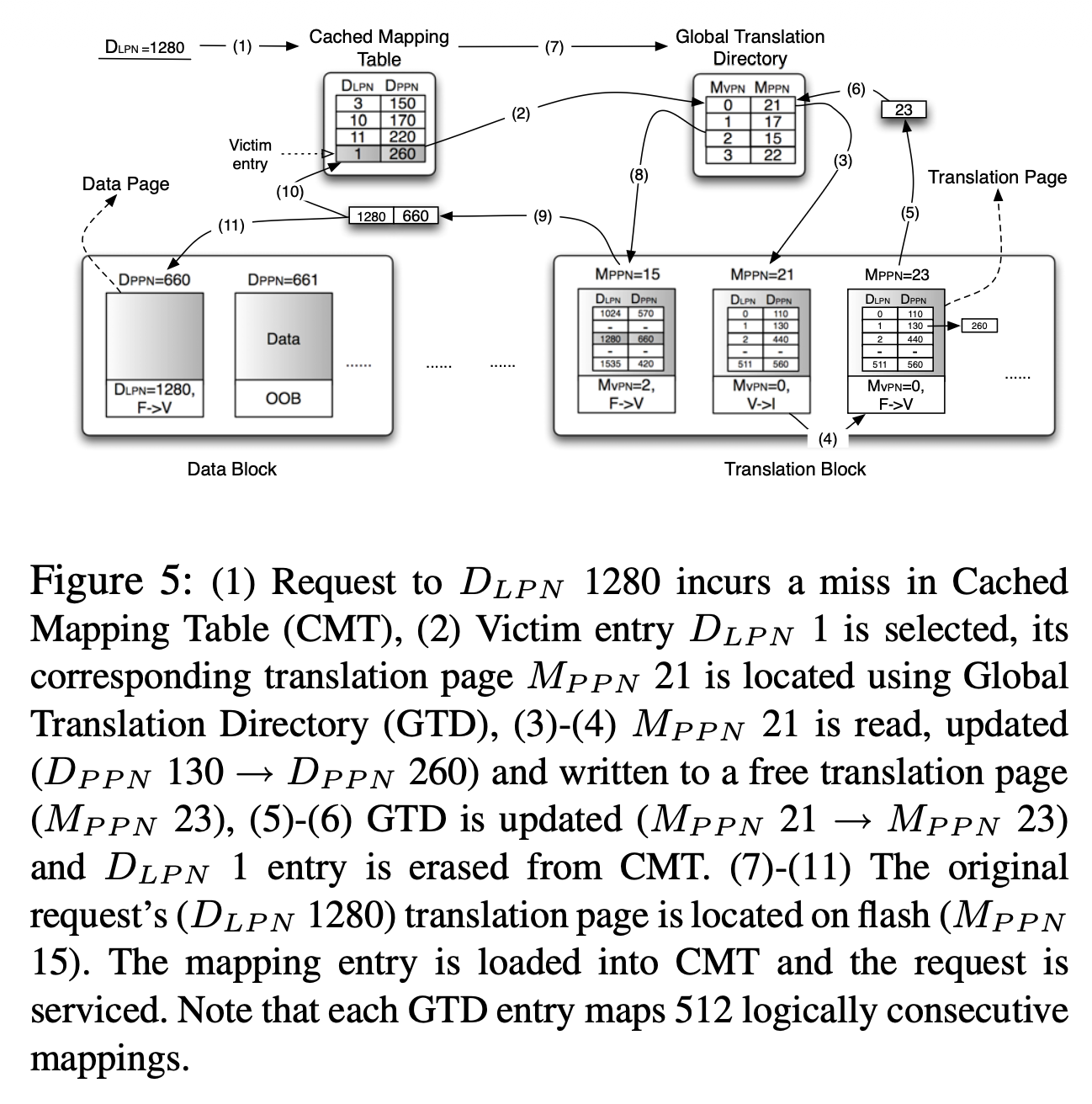

Performance Analysis
Our evaluation supports the key insight behind DFTL, namely that the temporal locality present in workloads helps keep this address translation overhead small, i.e., most requests are serviced from the mappings in SRAM. DFTL is able to utilize page-level temporal locality in workloads to reduce the valid page copying overhead since most hot blocks (data blocks and translation blocks) contain invalid pages and are selected as victims by our garbage collector. In our experiments, we observe about 63% hits for address translations in SRAM for the financial trace even with our conservatively chosen SRAM size.
Conclusion
We argued that existing hybrid FTL schemes exhibit poor performance for enterprise-scale workloads with significant random write patterns. We proposed a complete paradigm shift in the design of the FTL with our Demand-based Flash Translation Layer (DFTL) that selectively caches page-level address mappings. Our experimental evaluation using FlashSim with realistic enterprise-scale workloads endorsed DFTL’s efficacy for enterprise systems by demonstrating that DFTL offered (i) improved performance, (ii) reduced garbage collection overhead, (iii) improved overload behavior and (iv) most importantly unlike existing hybrid FTLs is free from any tunable parameters. As a representative example, a predominantly random write-dominant I/O trace from an OLTP application running at a large financial institution showed a 78% improvement in average response time due to a 3-fold reduction in garbage collection induced operations as compared to a state-of-the-art FTL scheme.
