Chap4. Compute architecture and scheduling

 This chapter presents several aspects of the GPU compute architecture that are essential for CUDA C programmers

to understand and reason about the performance behavior of their kernel code. We will start by showing a high-level, simplified view of the compute architecture and explore the concepts of flexible resource assignment, scheduling of blocks, and occupancy. We will then advance into thread scheduling, latency tolerance, control divergence, and synchronization. We will finish the chapter with a description of the API functions that can be used to query the resources that are available in the GPU and the tools to help estimate the occupancy of the GPU when executing a kernel. In the following two chapters, we will present the core concepts and programming considerations of the GPU memory architecture.







Architecture of a CUDA-capable GPU







 Fig. 4.1 shows a high-level, CUDA C programmer’s view of the architecture of a typical CUDA-capable GPU. It is organized into an array of highly threaded streaming multiprocessors (SMs). Each SM has several processing units called streaming processors or CUDA cores (hereinafter referred to as just cores for brevity), shown as small tiles inside the SMs in Fig. 4.1, that share control logic and memory resources. For example, the Ampere A100 GPU has 108 SMs with 64 cores each, totaling 6912 cores in the entire GPU.



 The SMs also come with different on-chip memory structures collectively labeled as “Memory” in Fig. 4.1. These on-chip memory structures will be the topic of Chapter 5, Memory Architecture and Data Locality. GPUs also come with gigabytes of off-chip device memory, referred to as “Global Memory” in Fig. 4.1. While older GPUs used graphics double data rate synchronous DRAM, more recent GPUs starting with NVIDIA’s Pascal architecture may use HBM (high-bandwidth memory) or HBM2, which consist of DRAM (dynamic random access memory) modules tightly integrated with the GPU in the same package. For brevity we will broadly refer to all these types of memory as DRAM for the rest of the book. We will discuss the most important concepts involved in accessing GPU DRAMs in Chapter 6, Performance Considerations.







Thread block assignment to streaming multiprocessors (SMs).







 Fig. 4.2 illustrates the assignment of blocks to SMs. Multiple blocks are likely to be simultaneously assigned to the same SM. For example, in Fig. 4.2, three blocks are assigned to each SM. However, blocks need to reserve hardware resources to execute, so only a limited number of blocks can be simultaneously assigned to a given SM. The limit on the number of blocks depends on a variety of factors that are discussed in Section 4.6.



 With a limited number of SMs and a limited number of blocks that can be simultaneously assigned to each SM, there is a limit on the total number of blocks that can be simultaneously executing in a CUDA device. Most grids contain many more blocks than this number. To ensure that all blocks in a grid get executed, the runtime system maintains a list of blocks that need to execute and assigns new blocks to SMs when previously assigned blocks complete execution.



 The assignment of threads to SMs on a block-by-block basis guarantees that threads in the same block are scheduled simultaneously on the same SM. This guarantee makes it possible for threads in the same block to interact with each other in ways that threads across different blocks cannot.1 This includes barrier synchronization, which is discussed in Section 4.3. It also includes accessing a low-latency shared memory that resides on the SM, which is discussed in Chapter 5, Memory Architecture and Data Locality.







Synchronization

  In CUDA, if a __syncthreads() statement is present, it must be executed by all threads in a block. When a __syncthreads() statement is placed in an if statement, either all threads in a block execute the path that includes the __syncthreads() or none of them does. For an if-then-else statement, if each path has a __syncthreads() statement, either all threads in a block execute the then-path or all of them execute the else-path. The two __syncthreads() are different barrier synchronization points. For example, in Fig. 4.4, two __syncthreads() are used in the if statement starting in line 04. All threads with even threadIdx.x values execute the then-path while the remaining threads execute the else-path. The __syncthreads() calls at line 06 and line 10 define two different barriers. Since not all threads in a block are guaranteed to execute either of the barriers, the code violates the rules for using __syncthreads() and will result in undefined execution behavior. In general, incorrect usage of barrier synchronization can result in incorrect result, or in threads waiting for each other forever, which is referred to as a deadlock. It is the responsibility of the programmer to avoid such inappropriate use of barrier synchronization.



 Barrier synchronization imposes execution constraints on threads within a block. These threads should execute in close time proximity with each other to avoid excessively long waiting times. More important, the system needs to make sure that all threads involved in the barrier synchronization have access to the necessary resources to eventually arrive at the barrier. Otherwise, a thread that never arrives at the barrier synchronization point can cause a deadlock. The CUDA runtime system satisfies this constraint by assigning execution resources to all threads in a block as a unit, as we saw in Section 4.2.



 Not only do all threads in a block have to be assigned to the same SM, but also they need to be assigned to that SM simultaneously. That is, a block can begin execution only when the runtime system has secured all the resources needed by all threads in the block to complete execution. This ensures the time proximity of all threads in a block and prevents an excessive or even indefinite waiting time during barrier synchronization.

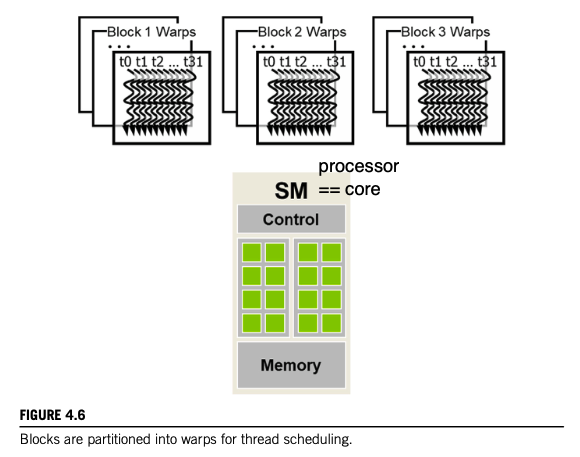

 A warp is the unit of thread scheduling in SMs. Fig. 4.6 shows the division of blocks into warps in an implementation. In this example there are three blocks - Block 1, Block 2, and Block 3 - all assigned to an SM. Each of the three blocks

is further divided into warps for scheduling purposes. Each warp consists of 32 threads of consecutive threadIdx values: threads 0 through 31 form the first warp, threads 32 through 63 form the second warp, and so on. We can calculate the number of warps that reside in an SM for a given block size and a given number of blocks assigned to each SM. In this example, if each block has 256 threads, we can determine that each block has 256/32 or 8 warps. With three blocks in the SM, we have 8 3 3 = 24 warps in the SM.







Warp scheduling and latency tolerance

 When threads are assigned to SMs, there are usually more threads assigned to an SM than there are cores in the SM. That is, each SM has only enough execution units to execute a subset of all the threads assigned to it at any point in time.



 In earlier GPU designs, each SM can execute only one instruction for a single warp at any given instant. In more recent designs, each SM can execute instructions for a small number of warps at any given point in time. In either case, the hardware can execute instructions only for a subset of all warps in the SM. A legitimate question is why we need to have so many warps assigned to an SM if it can execute only a subset of them at any instant? The answer is that this is how GPUs tolerate long-latency operations such as global memory accesses.



 When an instruction to be executed by a warp needs to wait for the result of a previously initiated long-latency operation, the warp is not selected for execution. Instead, another resident warp that is no longer waiting for results of previous instructions will be selected for execution. If more than one warp is ready for execution, a priority mechanism is used to select one for execution. This mechanism of filling the latency time of operations from some threads with work from other threads is often called “latency tolerance” or “latency hiding”







Summary

 A GPU is organized into SM, which consist of multiple processing blocks of cores that share control logic and memory resources. When a grid is launched, its blocks are assigned to SMs in an arbitrary order, resulting in transparent scalability of CUDA applications. The transparent scalability comes with a limitation: Threads in different blocks cannot synchronize with each other.



 Threads are assigned to SMs for execution on a block-by-block basis. Once a block has been assigned to an SM, it is further partitioned into warps. Threads in a warp are executed following the SIMD model. If threads in the same warp diverge by taking different execution paths, the processing block executes these paths in passes in which each thread is active only in the pass corresponding to the path that it takes.



 An SM may have many more threads assigned to it than it can execute simultaneously. At any time, the SM executes instructions of only a small subset of its resident warps. This allows the other warps to wait for long-latency operations without slowing down the overall execution throughput of the massive number of processing units. The ratio of the number of threads assigned to the SM to the maximum number of threads it can support is referred to as occupancy. The higher the occupancy of an SM, the better it can hide long-latency operations.



 Each CUDA device imposes a potentially different limitation on the amount of resources available in each SM. For example, each CUDA device has a limit on the number of blocks, the number of threads, the number of registers, and the amount of other resources that each of its SMs can accommodate. For each kernel, one or more of these resource limitations can become the limiting factor for occupancy. CUDA C provides programmers with the ability to query the resources available in a GPU at runtime.
